Features
-

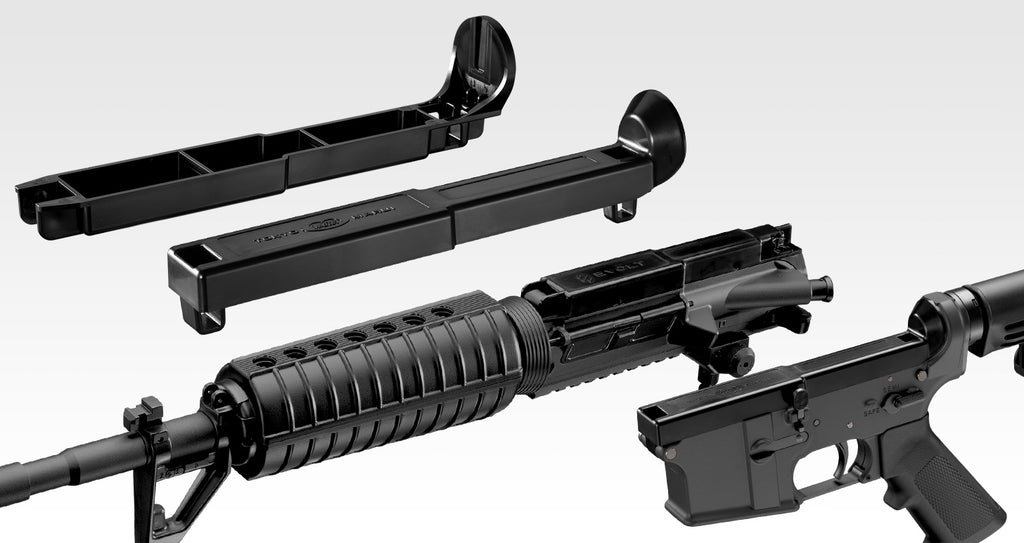

Separate type mechanical box
By dividing the gear box into the "cylinder assembly" and "gear box," the upper receiver side (upper set) and the lower receiver side (lower set) are completely separated. This allows for a more realistic takedown, even though it is an electric gun. A dedicated cover is included to protect the internal mechanism when storing or carrying the upper set and lower set separately. The cylinder is a small bore type with a smooth fluorine lubricating plating, and has a minimalist design that eliminates unnecessary volume.
-
EG1000BR motor
The motor is the newly developed "EG1000BR motor," a reverse type with bearings. The three gears (bevel gear, spur gear, and sector gear) that transmit the motor's rotation to the cylinder have been redesigned, using "MIM (metal injection molding)" instead of the conventional sintering method. Combined with the shaft diameter of the spur and sector gears being increased to 4mm, this has resulted in improved durability, smoother rotation, and exceptional quietness.
-

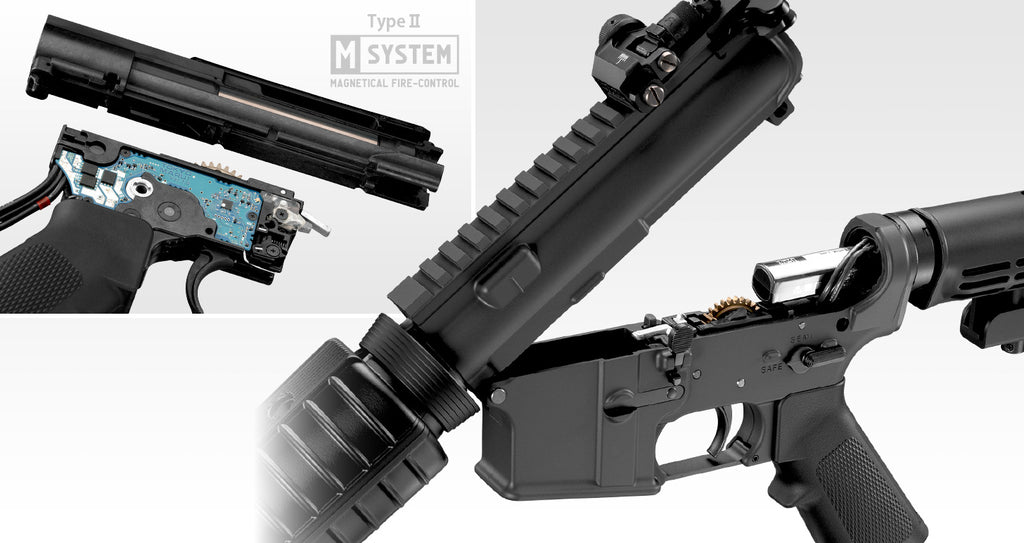

M-SYSTEM Type II
The gearbox is the "M-SYSTEM Type II," a specially designed version of the "M-SYSTEM" from the MP5 series of next-generation electric guns, optimized for the M4. The MCU (microcontroller unit) monitors information from various sensors and voltages to switch firing modes and control motor rotation, as well as detecting damage or abnormalities in various parts and stopping operation, ensuring safety.
-

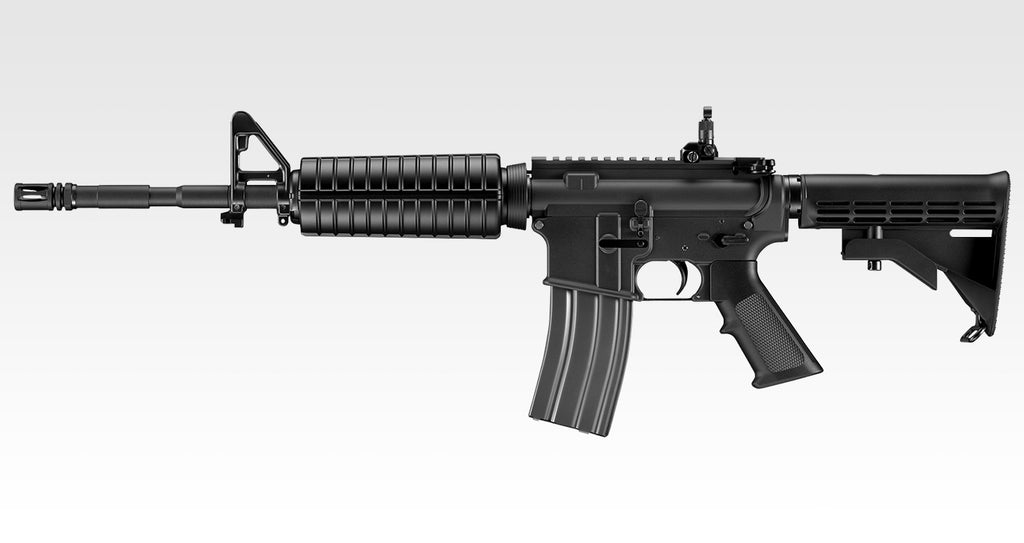

Pursuing the reproduction of the appearance
Measurements were taken from a non-functional real gun, and the dimensions of each part, including the upper and lower receivers, handguard, grip, and buffer tube, were realistically reproduced. The receiver is coated with Cerakote, a coating that provides a strong and abrasion-resistant coating. The grip is made of reinforced resin, which is both thin and durable, allowing for a realistic size, and is intentionally left unpainted to recreate the texture of the real thing.
-

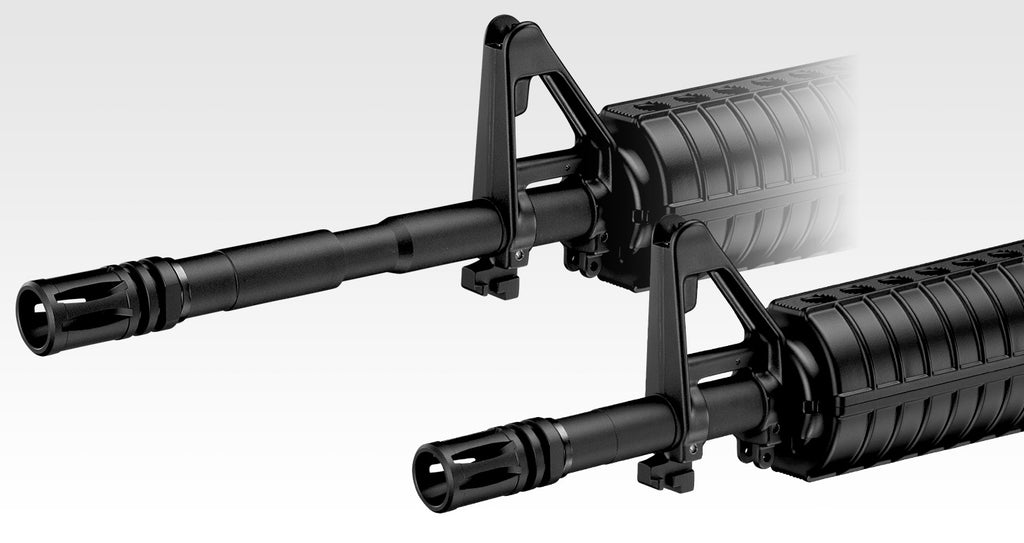

Barrel Change System
The 14.5-inch outer barrel can be replaced with the included 11.5-inch barrel extension. The barrel change system allows you to choose the barrel length that best suits your needs. Also, by removing the flash hider from the muzzle, various 14mm reverse-threaded muzzle options can be installed.
-
New chamber and magazine mechanism
Newly developed features include a "Stabilizer Nozzle" that stabilizes the nozzle position to improve accuracy, an "Inner Elevation" that applies upward tension to the inner magazine to prevent feeding errors, and a "One-by-One Loading System" that closes a shutter inside the magazine every time a BB bullet is sent from the magazine to the chamber, preventing BB bullets from being fed into the gun body after firing until the next bullet is loaded. These new mechanisms improve operational performance and safety.
-

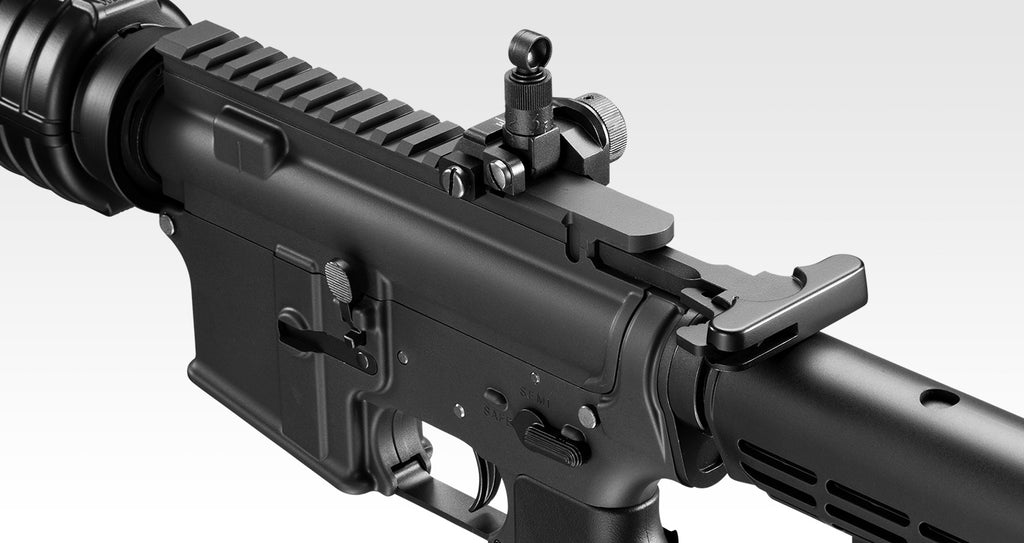

Reproduce realistic operation
The entire process is replicated, from pulling the charging handle to loading the first round, to the dummy bolt holding open when the gun is out of ammo, preventing BBs from firing even when the trigger is pulled. Pulling the trigger after removing a magazine with ammo remaining in the chamber also replicates the behavior of a gun with ammo remaining in the chamber. *For safety reasons, BBs will not fire in this case.
-

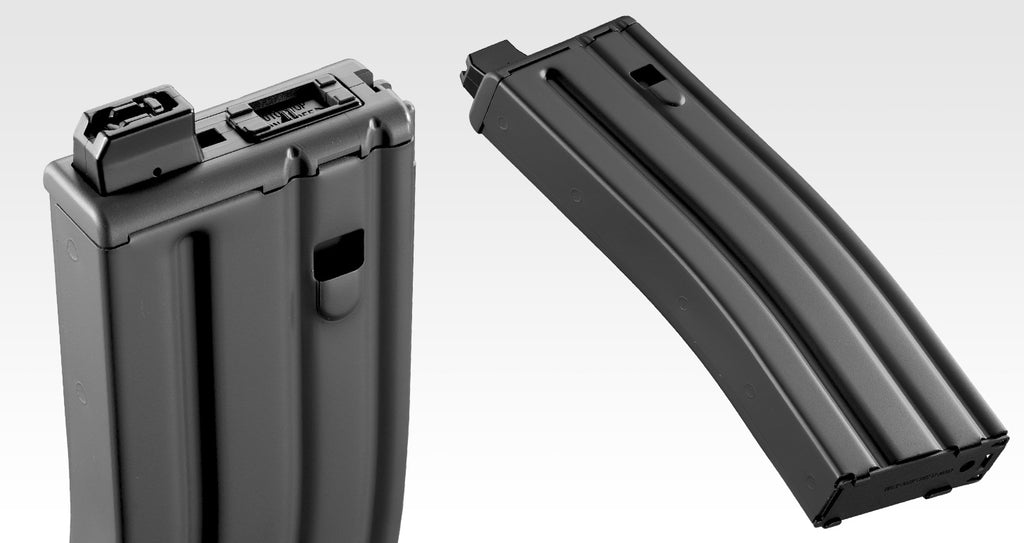

A realistic press-finished magazine
It holds 81 rounds. It comes with a dedicated magazine with a steel-pressed outer casing. The "Inner Elevation System" applies upward tension to the inner casing to prevent misfeeds. It also features a "One-by-One Loading System" that closes the shutter after each BB is fired, preventing the next round from being loaded until after firing.
